APPLICATION CONFIGURATION

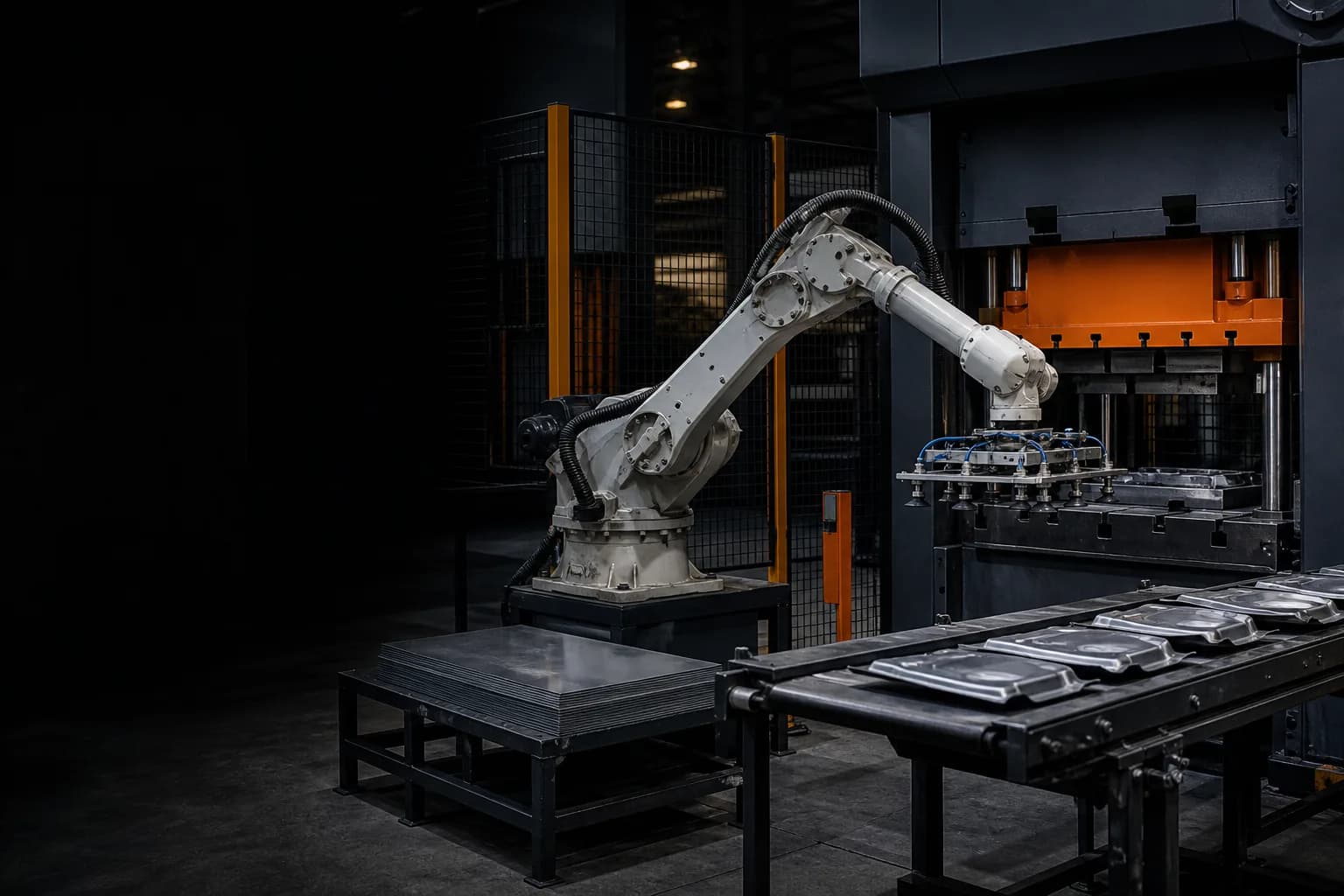

Loading & Unloading
Automate repeatable loading and unloading for presses, molding machines and process equipment with controlled orientation, buffers and handoffs.
Why this project needs a complete scope
Manual transfer limits cycle consistency and exposes operators to repetitive or hazardous access, but poorly planned infeed and outfeed can starve the robot.
Business and production outcomes
- Stabilize equipment loading intervals
- Control part orientation and buffer capacity
- Reduce manual access to repetitive process zones
What the review can deliver
- Load/unload sequence and interface map
- Robot, gripper and buffer concept
- Safety, recovery and commercial scope
What changes cost and lead time
- Part presentation and orientation
- Machine interface and buffer design
- Cycle, safety and installation
Information that starts the review
- Equipment and process sequence
- Part range, orientation and mass
- Infeed/outfeed, cycle and layout
What we configure
EOAT
Selected and validated as part of the complete application package.
Include in review ↗Part presentation
Selected and validated as part of the complete application package.
Include in review ↗Machine or process interface
Selected and validated as part of the complete application package.
Include in review ↗Sensors or vision
Selected and validated as part of the complete application package.
Include in review ↗Safety
Selected and validated as part of the complete application package.
Include in review ↗Selection factors
- Workpiece and total moving mass
- Reach and access
- Cycle and output target
- Accuracy and process tolerance
- Environment and utilities
- Safety and integration responsibility
What we need from you
- 2D/3D drawing or clear photos
- Material, dimensions and mass
- Current process
- Target cycle/output
- Layout and utilities
- Destination and target timeline
Project process
- 01Workpiece
- 02Process review
- 03Robot/brand
- 04BOM
- 05Partner scope
- 06Validation / FAT
- 07Delivery support
FAQ
01Do you manufacture every part and integrate every system in-house?+
No. TubeFrame Automation leads requirements, selection, configuration and project coordination, while qualified manufacturing and integration partners may perform defined work packages.
02What do you need for a robot recommendation?+
Provide the workpiece drawing or photos, material, dimensions, mass, process, cycle/output, accuracy, environment, layout, utilities, safety, destination, preferred brand and budget range.
03What files can I upload?+
PDF, JPG, PNG, STEP, STP, IGES, IGS, DXF, DWG and ZIP files are accepted within the configured size limit for project evaluation.
04How quickly will you respond?+
Initial project inquiries are normally answered within 12 business hours. Technical resolution and service response times are defined in the project or order documents.
NEXT PROJECT DECISION
Define every handoff in the loading and unloading sequence.
Share the equipment, part flow and target cycle to build a practical automation scope.
