PRODUCT CATALOG
Robot welding cells & lines
Compare robot welding cells & lines by configuration, interfaces and the equipment included in your quotation.
4product & series pages12equipment categories3website languages
4 products in this view
Robot welding cells & lines
Compare robot welding cells & lines by configuration, interfaces and the equipment included in your quotation.

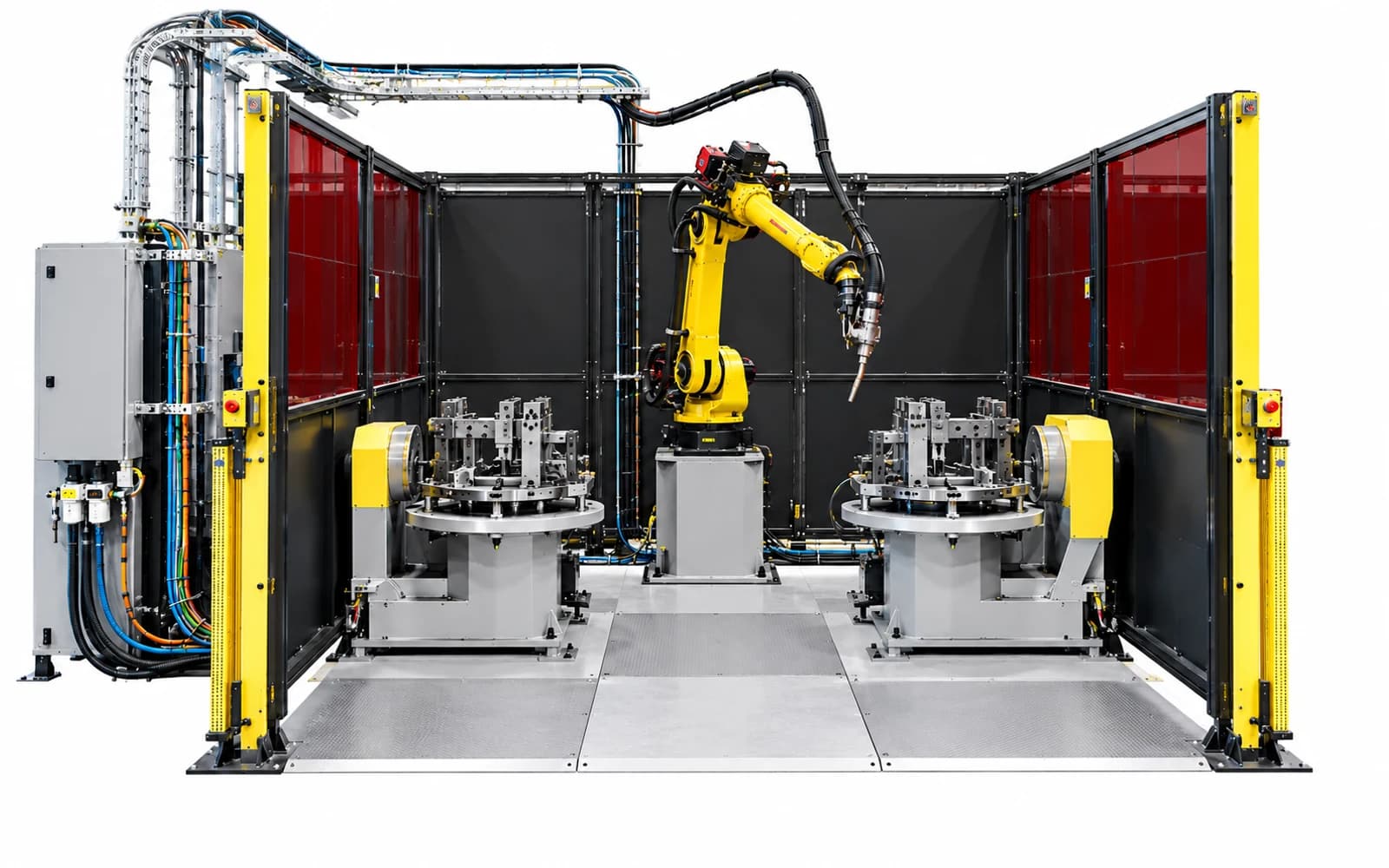

Robot welding cells & linesProject configurationMulti-Station Robot Welding CellsCompare rotary loading, in-line robot travel, wall-mounted travel, inverted travel, three-axis positioner and FT-style dual-station layouts. These arrangements solve different access and part-flow problems.
- Models
- Wall-mounted travel / Rotary multi-station / In-line travel / Inverted travel / Three-axis positioner cell / FT dual-station
- Configuration
- Application-specific equipment package

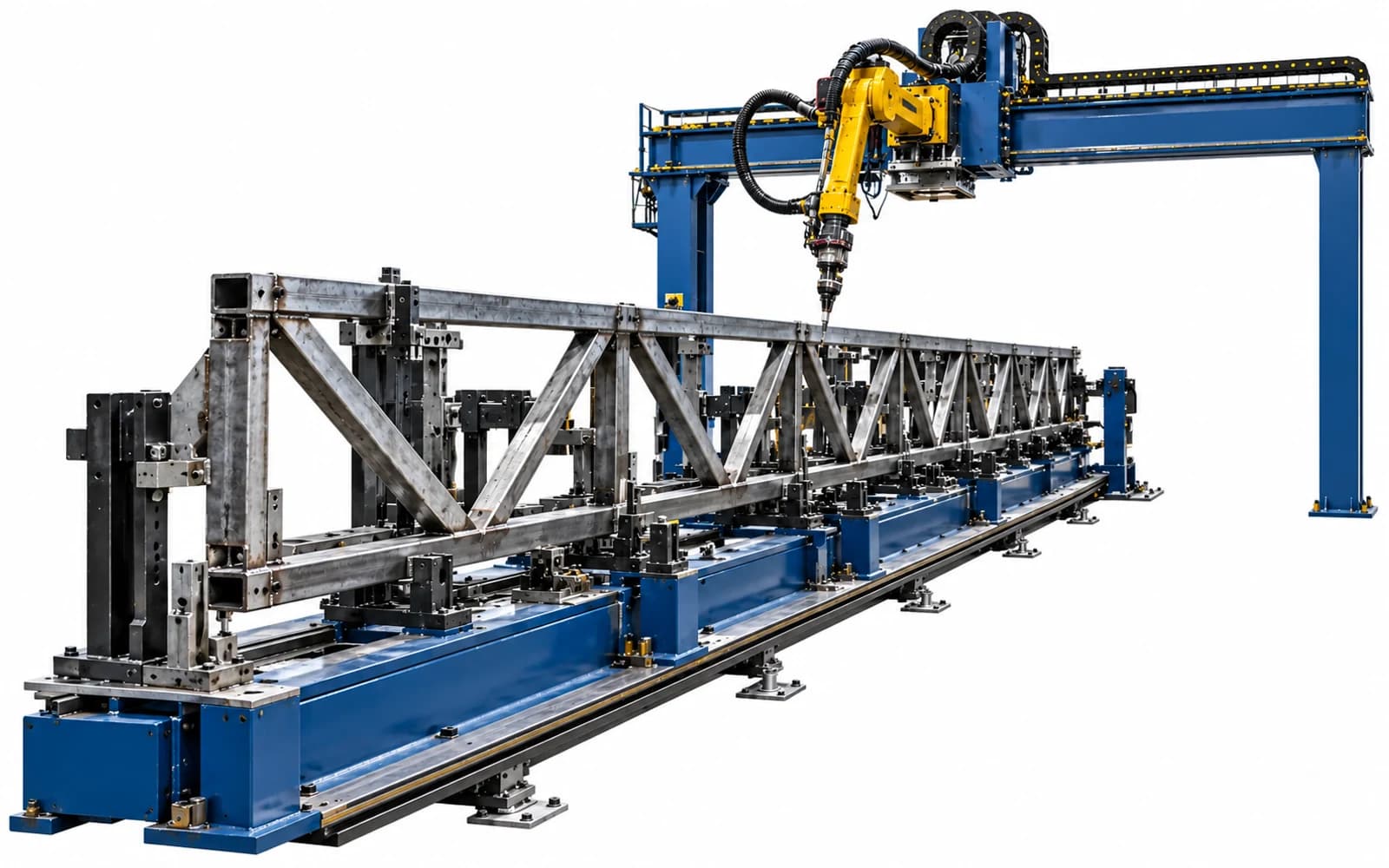

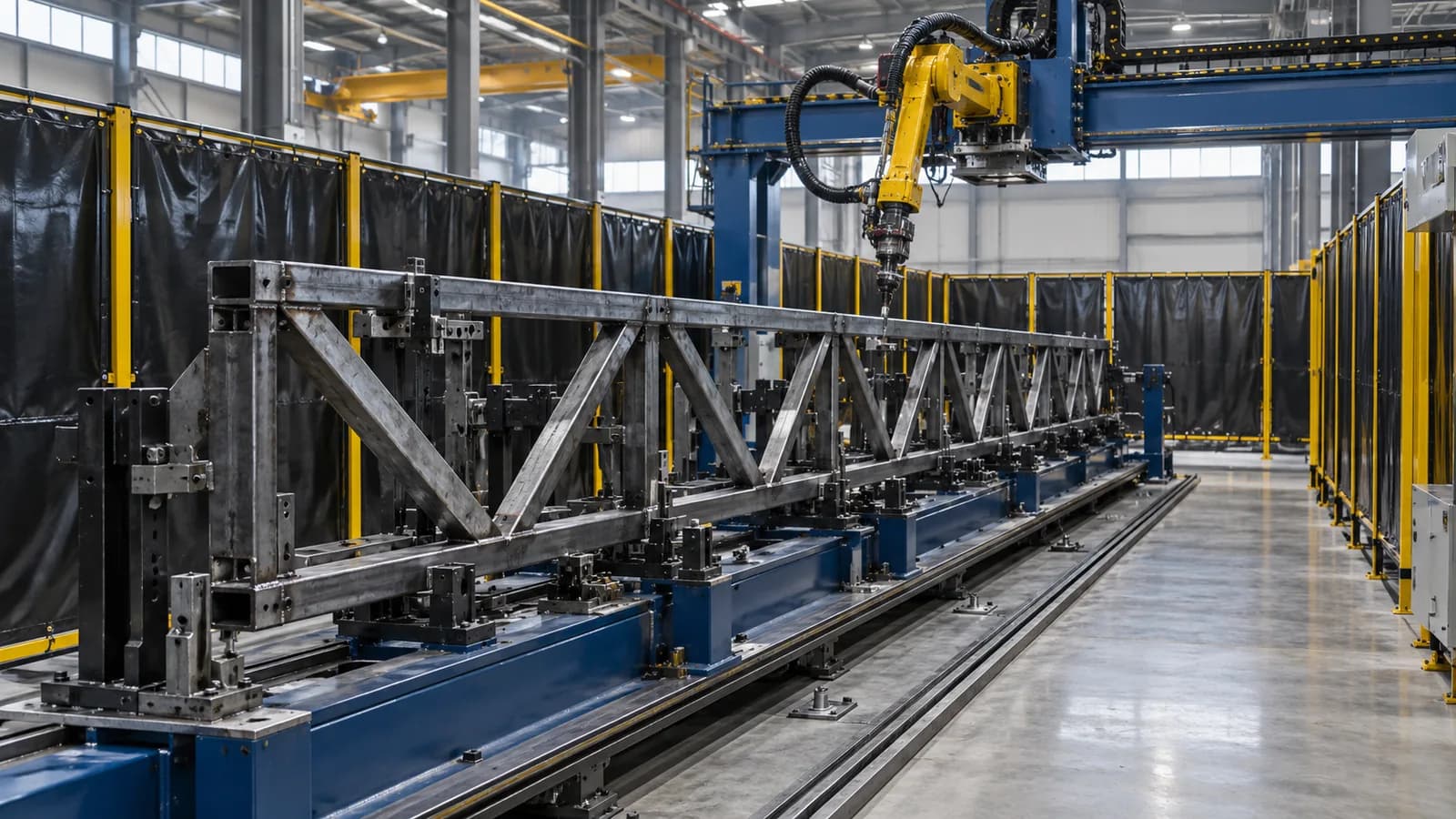

Robot welding cells & linesProject configurationSteel Truss Robotic Welding LinesLong tubular members and Bailey-panel-style lattice assemblies need a fixture and robot path that follow the joint family without obstructing clamps or unloading. Start the welding-line proposal with node geometry, member variation, distortion measurement and support points.
- Models
- Tubular truss assembly / Bailey-panel lattice assembly
- Configuration
- Application-specific equipment package

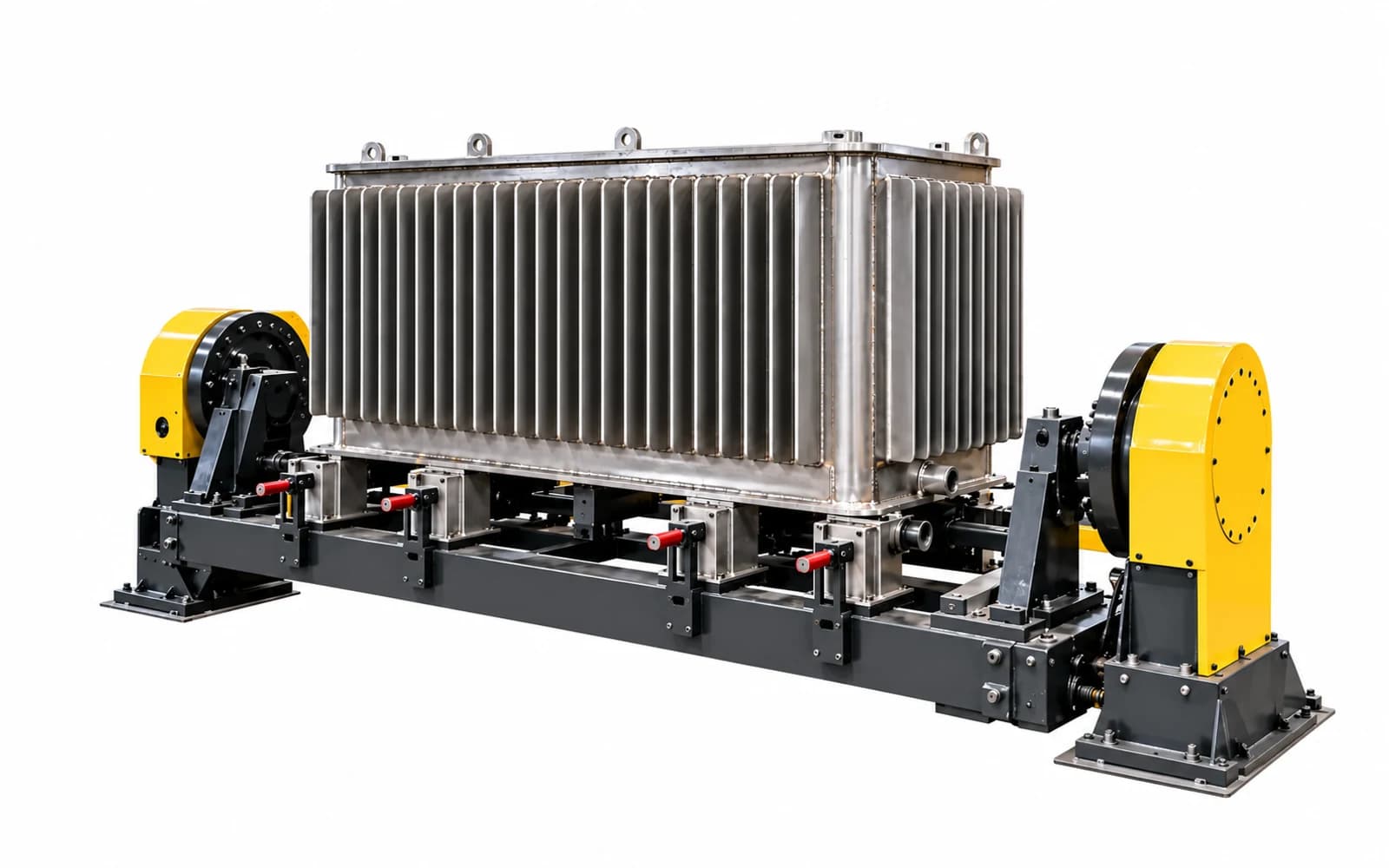

Robot welding cells & linesProject configurationTransformer Tank Robotic WeldingA corrugated transformer tank welding concept should begin with seam access between fins, sheet thickness, fit-up, heat distortion and the specified leak-test method. Plan part support and turning so the torch can maintain the required orientation around the enclosure.
- Models
- Corrugated transformer tank
- Configuration
- Application-specific equipment package

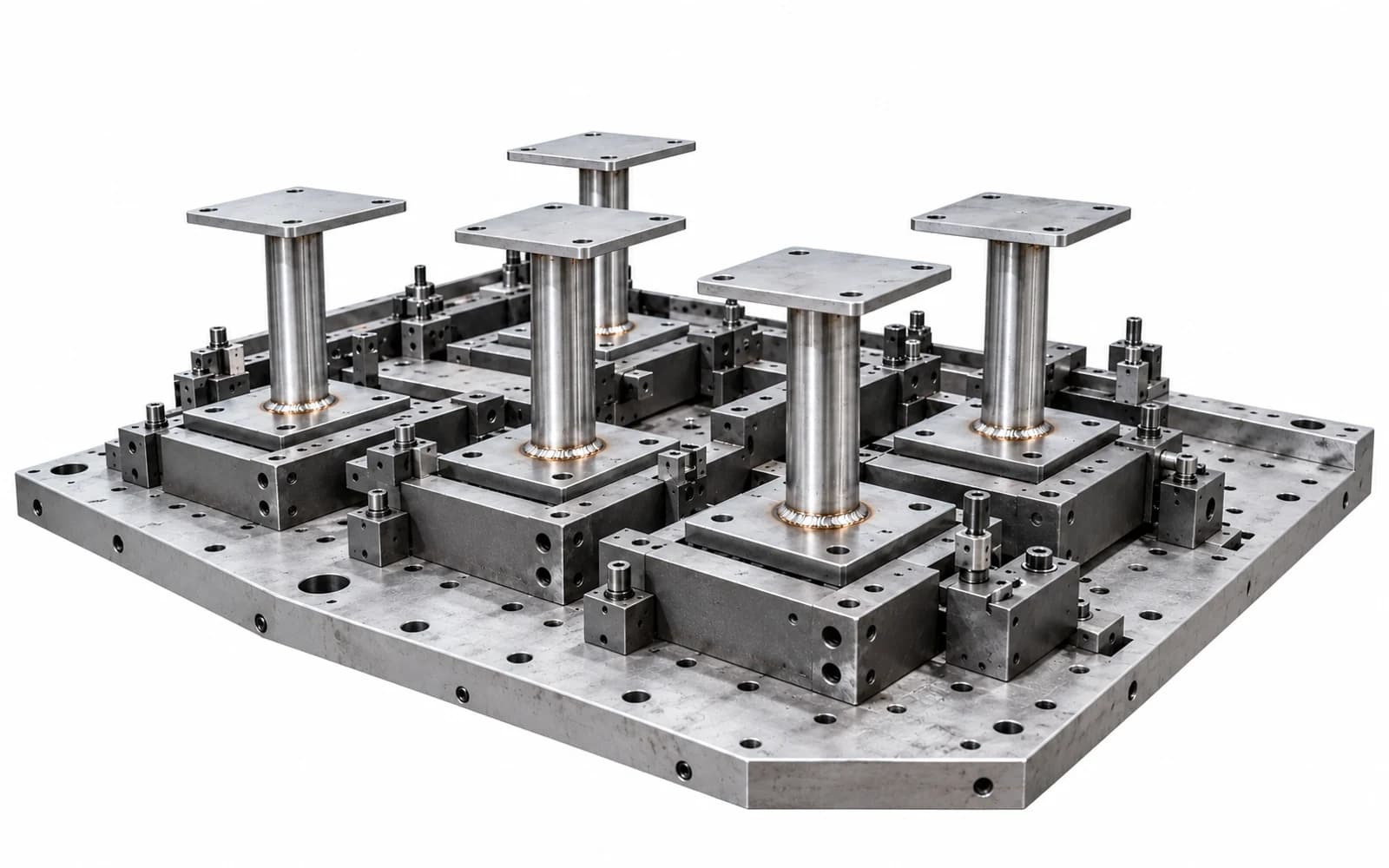

Robot welding cells & linesProject configurationRaised-Floor Pedestal Robot WeldingRaised-floor pedestal welding centers on the tube-to-plate joint, perpendicularity, clamp access and release of small repeated assemblies. Quote the part family with base and head-plate dimensions, tube range, surface condition and required inspection.
- Models
- Raised-floor pedestal
- Configuration
- Application-specific equipment package
