Welding positioners
Workpiece-positioning equipment for access, weld sequence and fixture planning.
5product & series pages12equipment categories3website languages
5 products in this view
Welding positioners
Workpiece-positioning equipment for access, weld sequence and fixture planning.

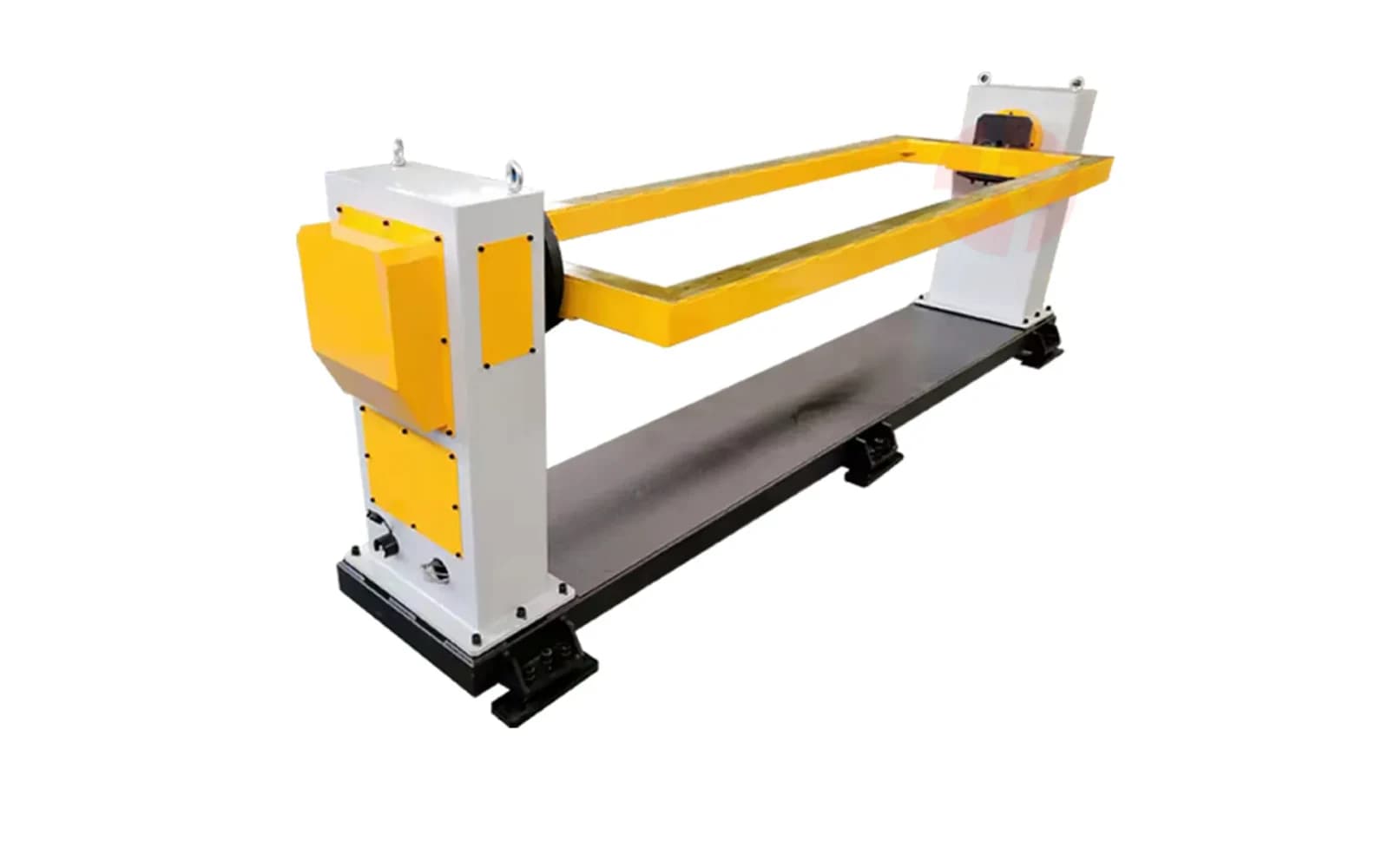

Welding positionersJYJY-08 Single-Axis Headstock-Tailstock Welding Positioner Welding PositionerThe JY-08 headstock-tailstock family supports a fixture between two ends for controlled single-axis rotation. Compare the 300, 500 and 1000 variants against the complete fixture-and-part assembly, support spacing, rotating clearance and the required weld sequence.
- Models
- JY-08/300 / JY-08/500 / JY-08/1000
- Rated load
- ≤300kg
- Rotation radius
- R690mm

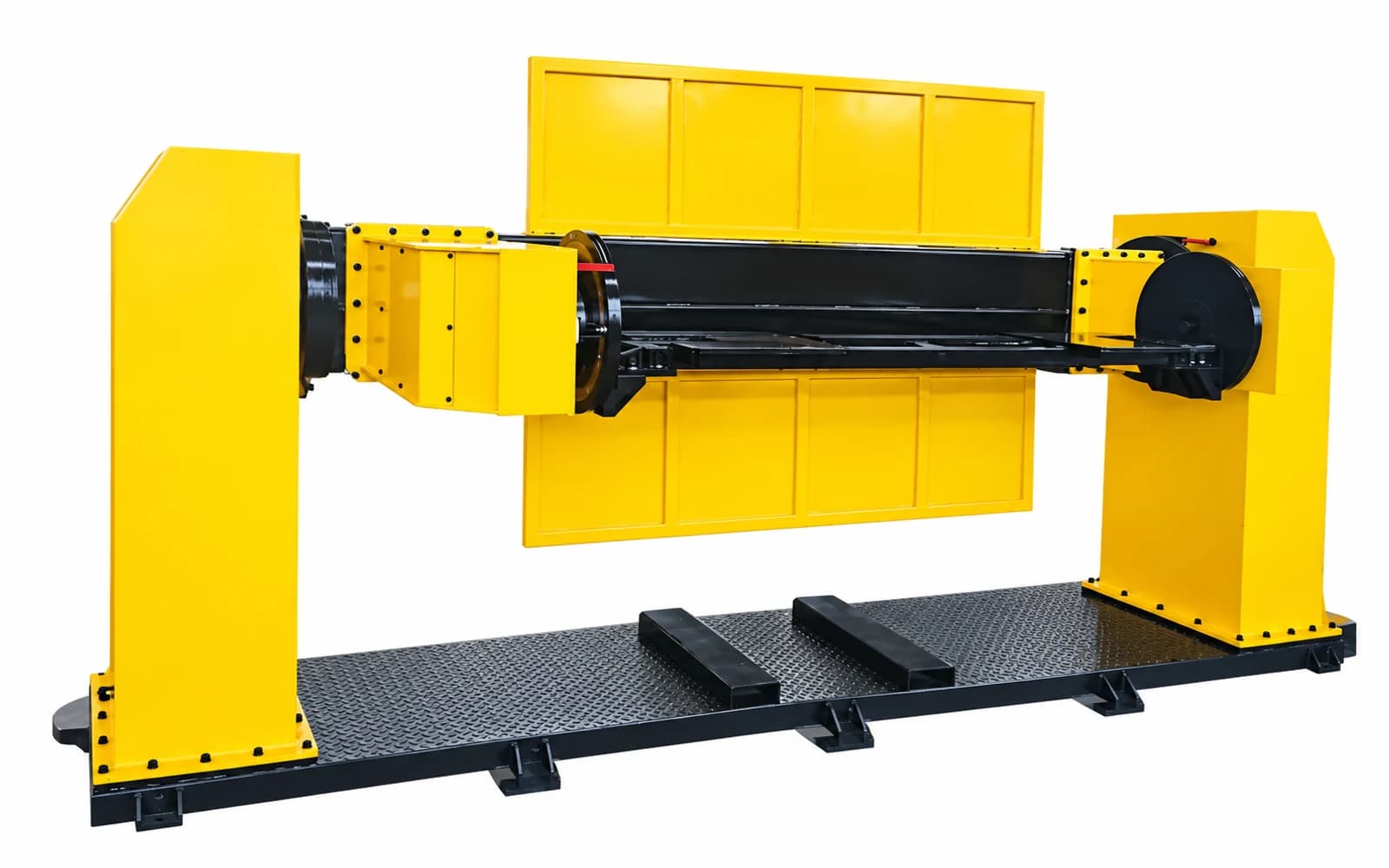

Welding positionersJYJY-16H Three-Axis Multi-Angle Welding Positioner Welding PositionerThe JY-16H multi-angle family now has a source-listed comparison of the 500, 1000 and 2000 configurations. The table separates rated load, supply and angular precision; none of those values establishes the permissible offset fixture or the quality of a finished weld. Define the loaded envelope and motion package with the current project drawing.
- Models
- JY-16/H/500 / JY-16/H/1000 / JY-16/H/2000
- Rated load
- ≤500kg
- Power supply
- 220V/380V 50Hz/60Hz
Welding positionersJYJY Dual-Axis Welding PositionersCompare the compact JY-06, U-frame JY-10 and L-arm JY-12 when a weldment needs both tilt and rotation. Choose the structure from fixture support, workpiece clearance and the required torch angle, then compare the actual model rows below.
- Models
- JY-06/100 / JY-10/500 / JY-10/1000 / JY-10/2500 / JY-12/500 / JY-12/1000 / JY-12/2000
- Rated load
- ≤100kg
- Rotation radius
- R400mm

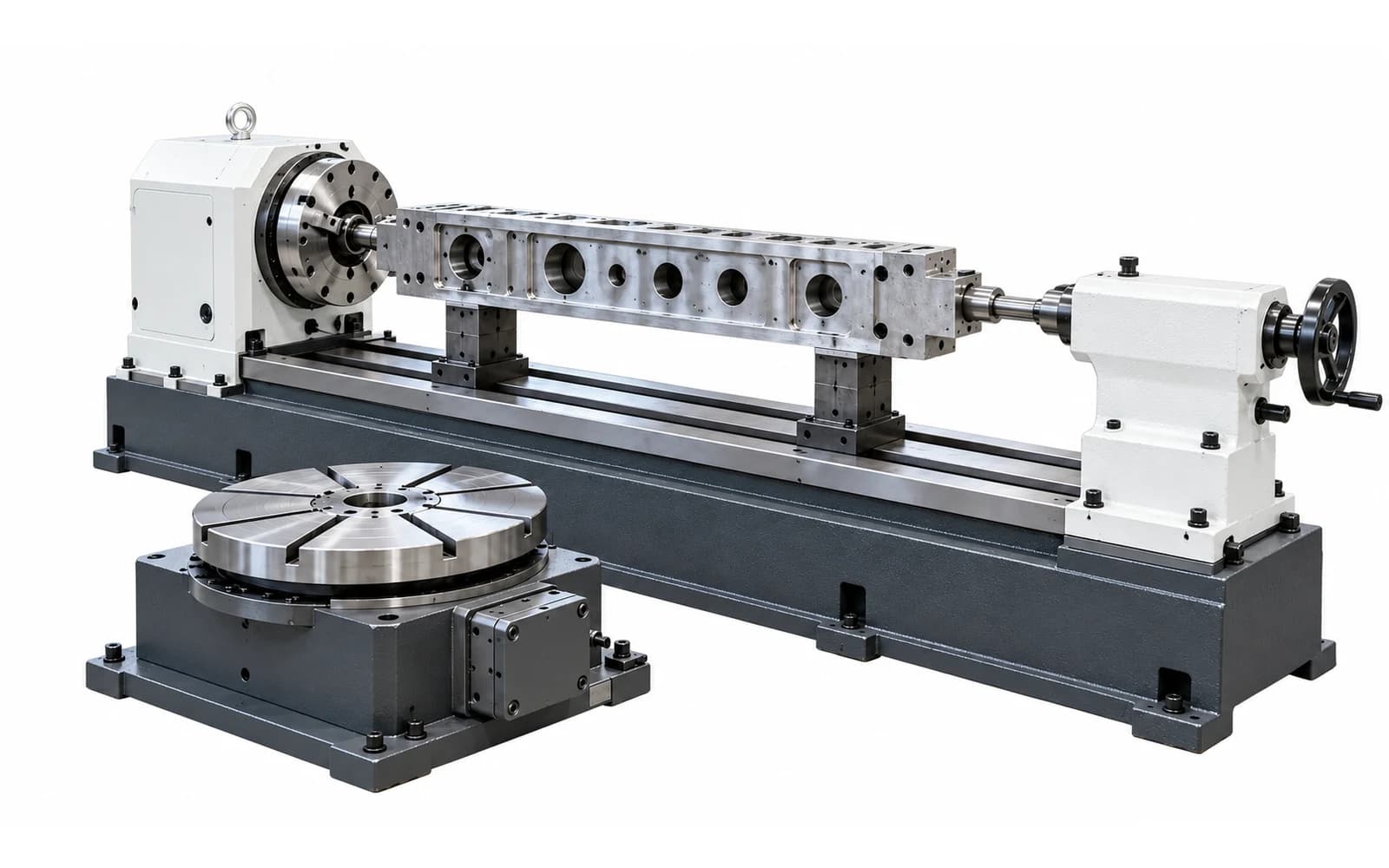

Welding positionersJYJY Single-Axis Welding PositionersJY-08G provides a movable-tailstock arrangement for supported long parts, JY-09 uses a horizontal rotary platform, and JY-15 uses a C-type turnover structure. These are different fixture and loading decisions, not interchangeable load ratings.
- Models
- JY-08G/ZX/500 / JY-08G/ZX/1000 / JY-08G/ZX/2000 / JY-09/200 / JY-09/500 / JY-09/1000 / JY-15/ZX/500 / JY-15/ZX/1000
- Rated load
- ≤500kg
- Rotation radius
- R690mm

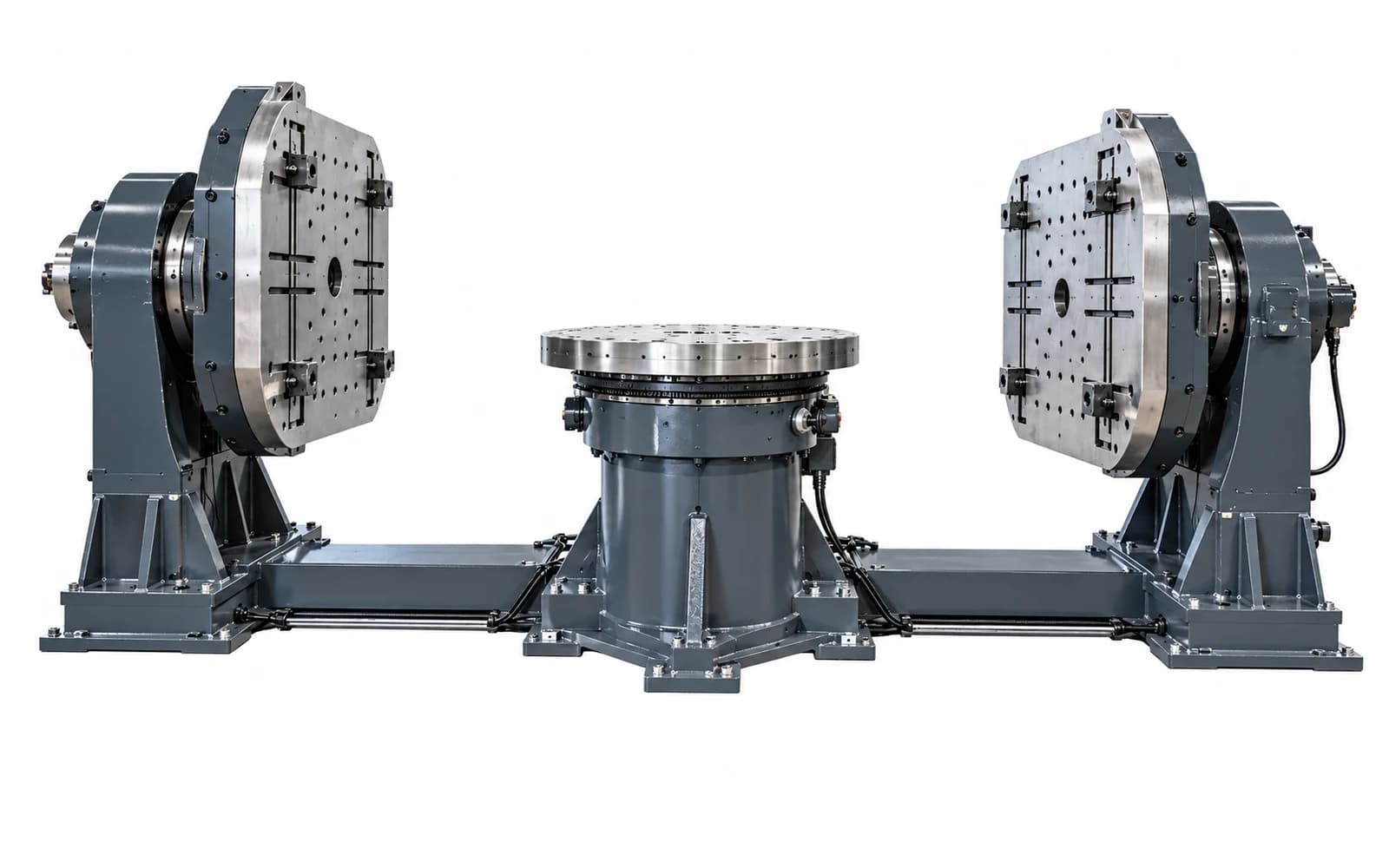

Welding positionersJYJY Multi-Axis Welding PositionersCompare the JY-16SP, JY-16Y, JY-18 and JY-81/T arrangements for multi-angle welding and loading access. The JY-18 adds a lifting/sliding L-type arrangement, while the JY-16SP listing separates A/B station loads.
- Models
- JY-16/SP/500 / JY-16/SP/1000 / JY-16/SP/1500 / JY-81/T / JY-16/Y/500 / JY-16/Y/1000 / JY-16/Y/2000 / JY-18/300 / JY-18/500 / JY-18/1000
- Station rated load
- ≤500kg
- Main-axis rotation diameter
- Φ3200mm
