APPLICATION CONFIGURATION

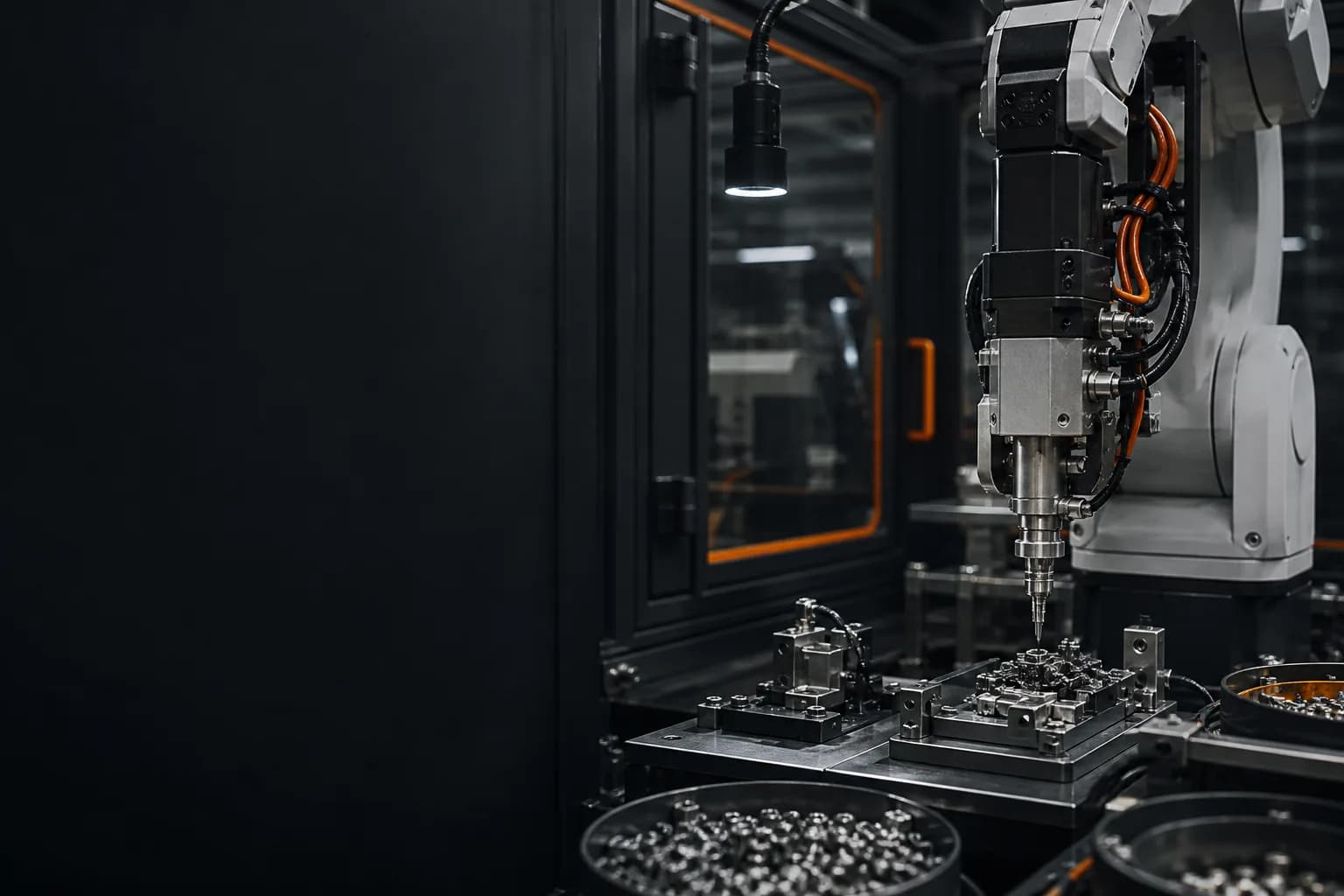

Robotic Assembly
Configure robotic fastening, insertion, pressing, dispensing or verification around the tolerance, force, tooling and traceability the assembly needs.
Why this project needs a complete scope
A robot can repeat motion while still producing bad assemblies if tolerance stack-up, feeding, tool wear or verification is uncontrolled.
Business and production outcomes
- Improve repeatable assembly and verification
- Capture torque, force or inspection results where required
- Reduce manual variation in repetitive operations
What the review can deliver
- Assembly-process and tolerance review
- Tooling, sensing and fixture concept
- Control, traceability and acceptance scope
What changes cost and lead time
- Feeding and part variation
- Force/torque, vision and verification
- Tooling, traceability and changeover
Information that starts the review
- Assembly drawing and sequence
- Tolerance, force/torque and quality criteria
- Part supply, cycle and model mix
What we configure
EOAT
Selected and validated as part of the complete application package.
Include in review ↗Part presentation
Selected and validated as part of the complete application package.
Include in review ↗Machine or process interface
Selected and validated as part of the complete application package.
Include in review ↗Sensors or vision
Selected and validated as part of the complete application package.
Include in review ↗Safety
Selected and validated as part of the complete application package.
Include in review ↗Selection factors
- Workpiece and total moving mass
- Reach and access
- Cycle and output target
- Accuracy and process tolerance
- Environment and utilities
- Safety and integration responsibility
What we need from you
- 2D/3D drawing or clear photos
- Material, dimensions and mass
- Current process
- Target cycle/output
- Layout and utilities
- Destination and target timeline
Project process
- 01Workpiece
- 02Process review
- 03Robot/brand
- 04BOM
- 05Partner scope
- 06Validation / FAT
- 07Delivery support
FAQ
01Do you manufacture every part and integrate every system in-house?+
No. TubeFrame Automation leads requirements, selection, configuration and project coordination, while qualified manufacturing and integration partners may perform defined work packages.
02What do you need for a robot recommendation?+
Provide the workpiece drawing or photos, material, dimensions, mass, process, cycle/output, accuracy, environment, layout, utilities, safety, destination, preferred brand and budget range.
03What files can I upload?+
PDF, JPG, PNG, STEP, STP, IGES, IGS, DXF, DWG and ZIP files are accepted within the configured size limit for project evaluation.
04How quickly will you respond?+
Initial project inquiries are normally answered within 12 business hours. Technical resolution and service response times are defined in the project or order documents.
NEXT PROJECT DECISION
Define the assembly result the robot must verify.
Send the parts, sequence and acceptance criteria for a tooling and automation review.
