APPLICATION CONFIGURATION

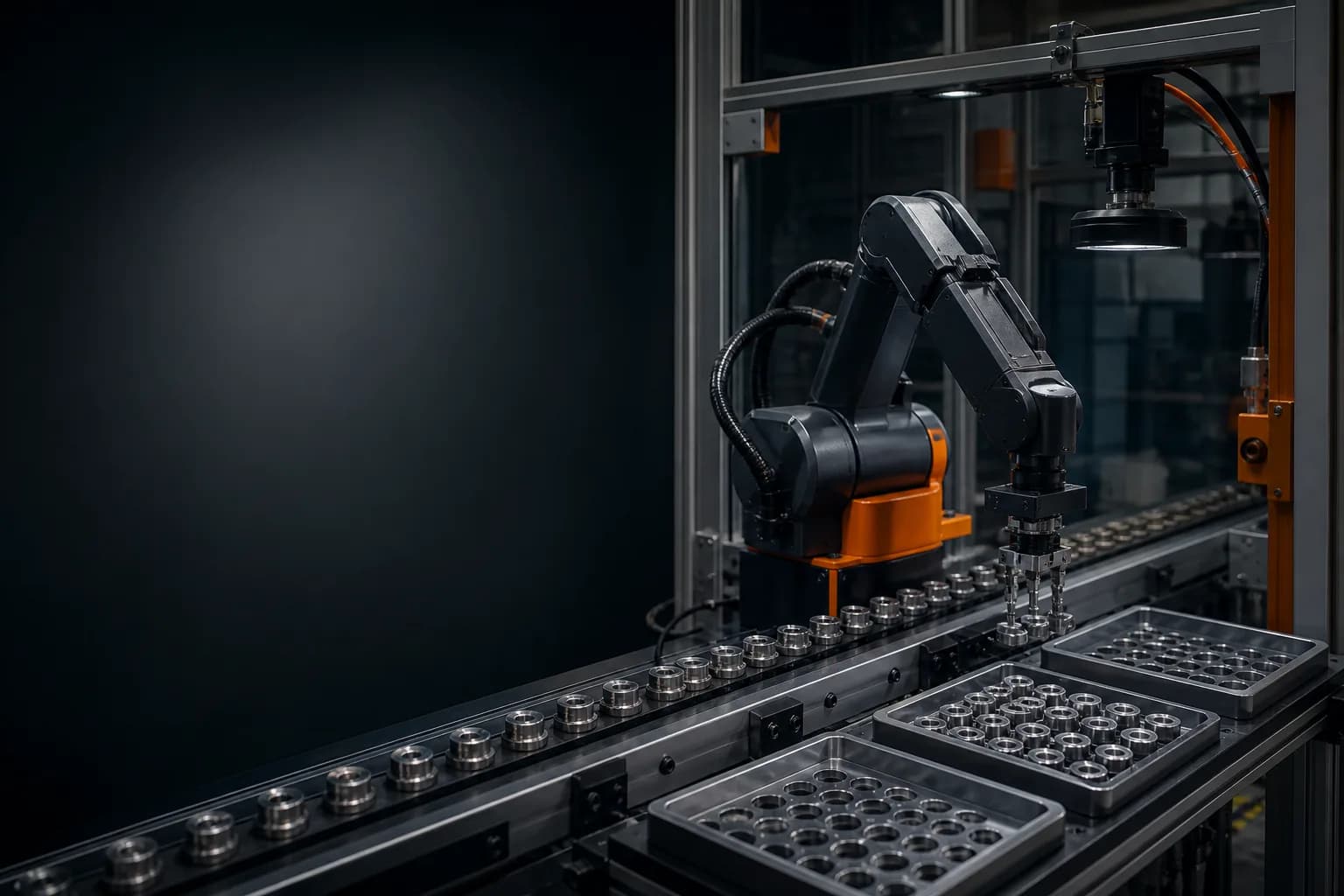

Pick & Place
Match robot speed, product presentation, detection, gripping, reject handling and changeover to a reliable pick-and-place cycle.
Why this project needs a complete scope
A fast robot cannot recover output lost to inconsistent feeding, missed picks, product damage or slow changeover.
Business and production outcomes
- Increase repeatable picks per minute
- Control missed-pick and reject behavior
- Support product variation with planned changeover
What the review can deliver
- Pick-cycle and presentation review
- Robot, vision and gripper concept
- Rate, reject and acceptance criteria
What changes cost and lead time
- Required speed and product variation
- Conveyor tracking and vision
- Gripper changeover and reject handling
Information that starts the review
- Product size, mass and surface
- Presentation and destination pattern
- Target rate, reject rule and changeover
What we configure
EOAT
Selected and validated as part of the complete application package.
Include in review ↗Part presentation
Selected and validated as part of the complete application package.
Include in review ↗Machine or process interface
Selected and validated as part of the complete application package.
Include in review ↗Sensors or vision
Selected and validated as part of the complete application package.
Include in review ↗Safety
Selected and validated as part of the complete application package.
Include in review ↗Selection factors
- Workpiece and total moving mass
- Reach and access
- Cycle and output target
- Accuracy and process tolerance
- Environment and utilities
- Safety and integration responsibility
What we need from you
- 2D/3D drawing or clear photos
- Material, dimensions and mass
- Current process
- Target cycle/output
- Layout and utilities
- Destination and target timeline
Project process
- 01Workpiece
- 02Process review
- 03Robot/brand
- 04BOM
- 05Partner scope
- 06Validation / FAT
- 07Delivery support
FAQ
01Do you manufacture every part and integrate every system in-house?+
No. TubeFrame Automation leads requirements, selection, configuration and project coordination, while qualified manufacturing and integration partners may perform defined work packages.
02What do you need for a robot recommendation?+
Provide the workpiece drawing or photos, material, dimensions, mass, process, cycle/output, accuracy, environment, layout, utilities, safety, destination, preferred brand and budget range.
03What files can I upload?+
PDF, JPG, PNG, STEP, STP, IGES, IGS, DXF, DWG and ZIP files are accepted within the configured size limit for project evaluation.
04How quickly will you respond?+
Initial project inquiries are normally answered within 12 business hours. Technical resolution and service response times are defined in the project or order documents.
NEXT PROJECT DECISION
Prove the complete pick rate, including feeding and rejects.
Share the product, presentation and required rate for a pick-and-place concept review.
