Motion and process equipment

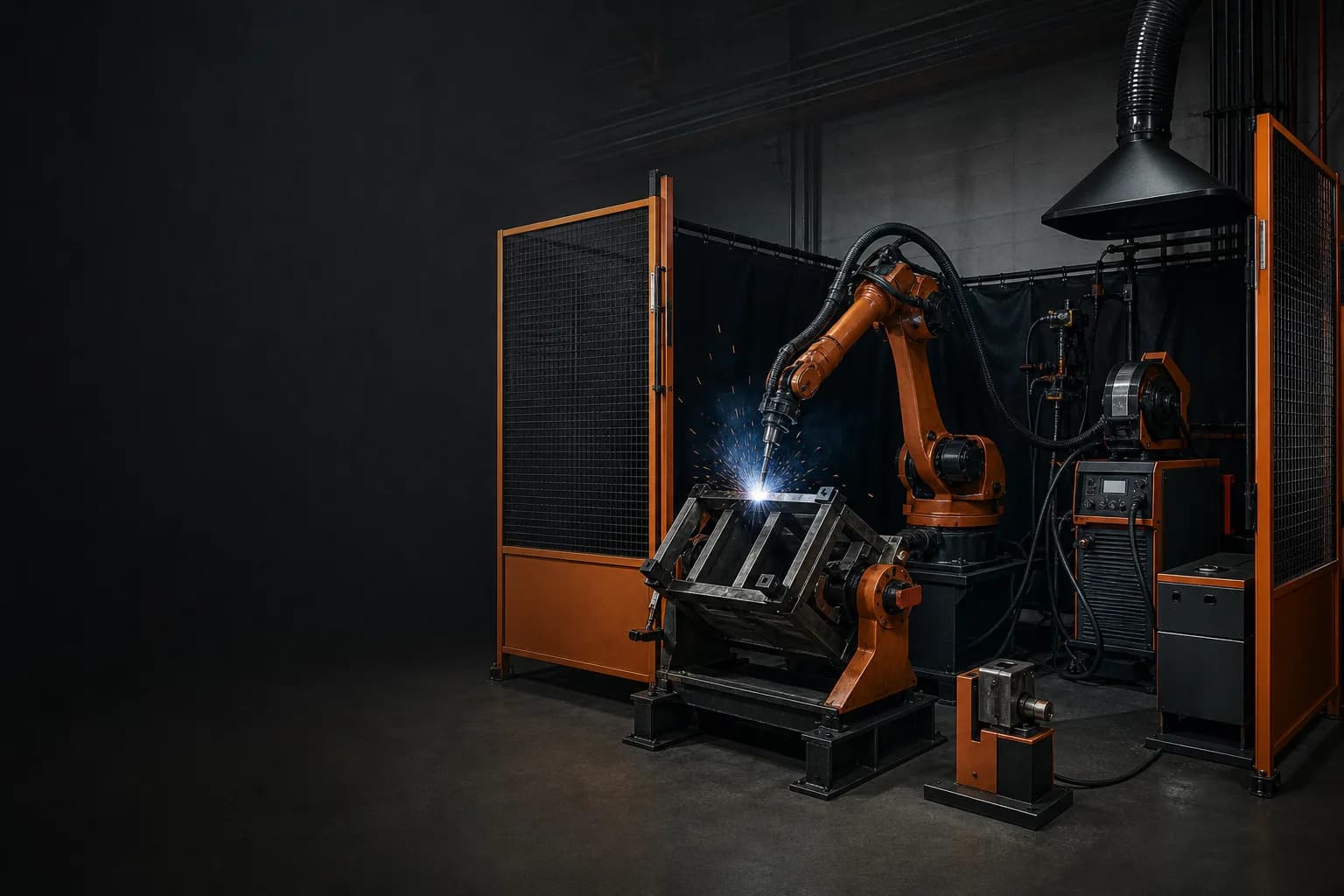

The robot positions the torch; the controller, welding source, feeder and torch create and control the weld. Compatibility includes physical mounting, communication, process commands, feedback, cable routing and application software.
- Robot and controller
- Power source, feeder and torch
- Dress pack and process interface
Workholding and positioning
Fixtures establish repeatable datums and control fit-up. Positioners rotate or index the workpiece to improve access and weld orientation, but their load, inertia, fixture interface and coordinated motion must be included in layout checks.
- Locators, clamps and changeover
- Rotary or multi-axis positioner
- Part loading and finished-part removal
Sensing, safety and cell support
Touch sensing, arc or laser seam tracking, inspection and recovery address variation. Guarding, interlocks, fume extraction, utilities and maintenance access make the process operable beyond a demonstration.
- Seam finding and tracking
- Guarding and risk controls
- Fume, utilities and service access
Services belong in the system price
Concept design, programming, trials, FAT, documentation, shipping, installation, commissioning, training, warranty and spare parts may change the total investment as much as one hardware choice. Compare quotations on the same responsibility boundary.
- Engineering and programming
- FAT, installation and training
- Warranty, spares and support
Decision checklist
Use the same inputs when comparing supplier proposals.
| Decision area | Inputs to confirm |
|---|---|
| Motion and process equipment | Robot and controller; Power source, feeder and torch; Dress pack and process interface |
| Workholding and positioning | Locators, clamps and changeover; Rotary or multi-axis positioner; Part loading and finished-part removal |
| Sensing, safety and cell support | Seam finding and tracking; Guarding and risk controls; Fume, utilities and service access |
| Services belong in the system price | Engineering and programming; FAT, installation and training; Warranty, spares and support |
Move from research to a commercial review
Send the weldment and target output to build a complete equipment and service checklist.
