Robotic Welding
Configure robot, power source, torch, feeder, fixture, positioner, sensing and safety around the weld and workpiece.
Review application ↗
REPRESENTATIVE CONFIGURATION

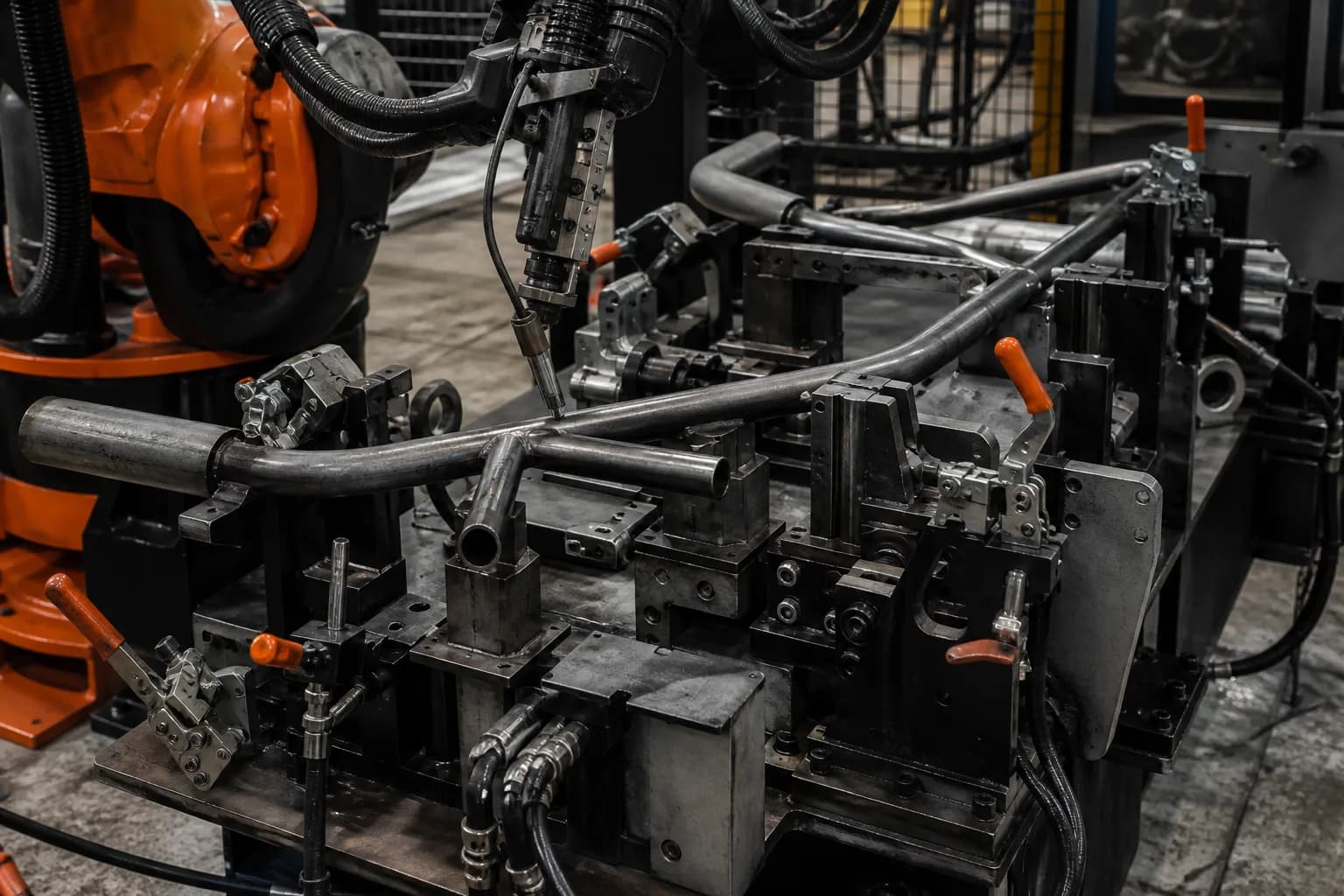

Custom Welding Fixture

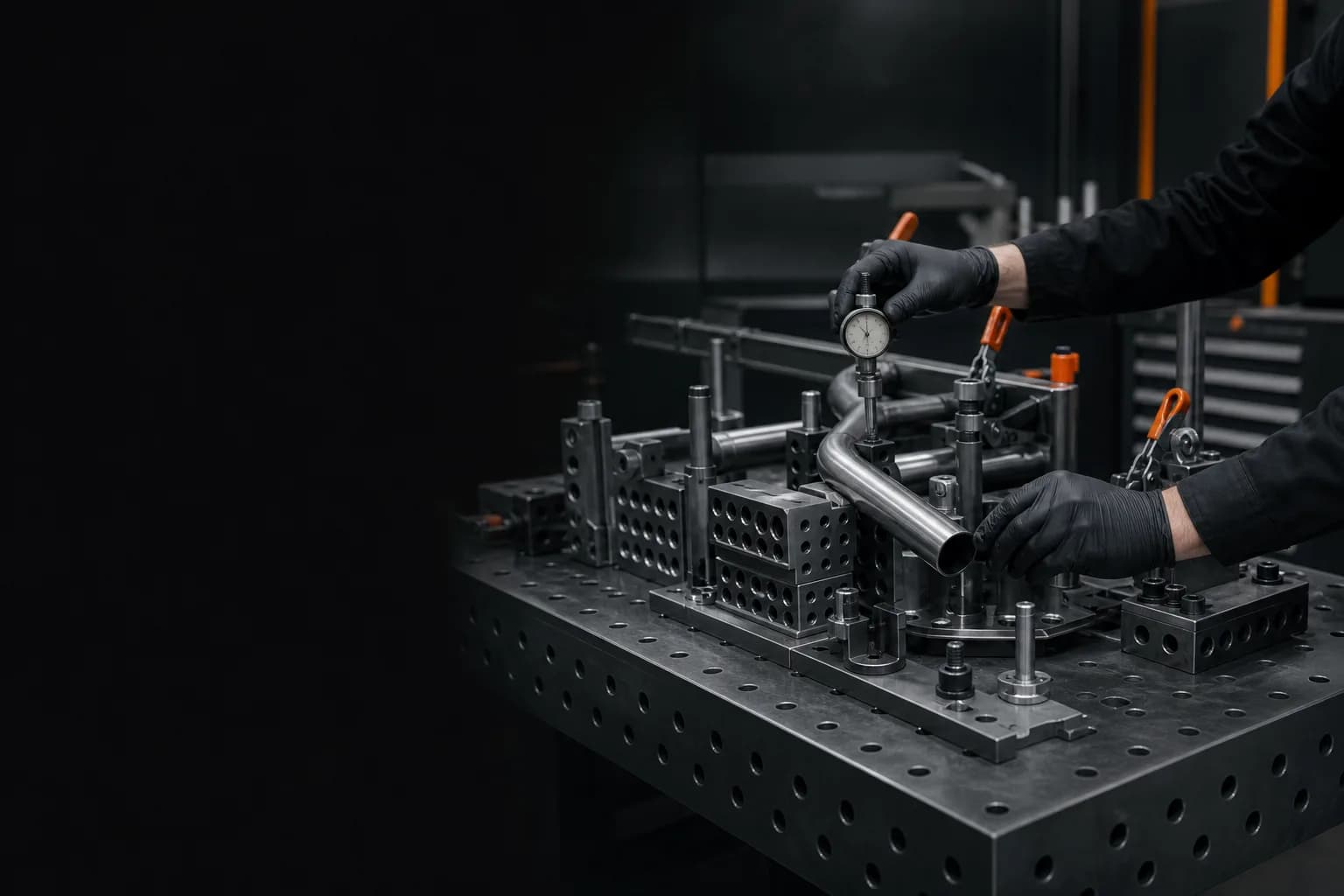

A drawing-led fixture concept developed around datums, clamping, weld access, distortion and changeover.
Payload, reach and tool access are checked against the actual workpiece and production target.
Tooling, workholding, controls, safety and access determine whether the platform becomes productive equipment.

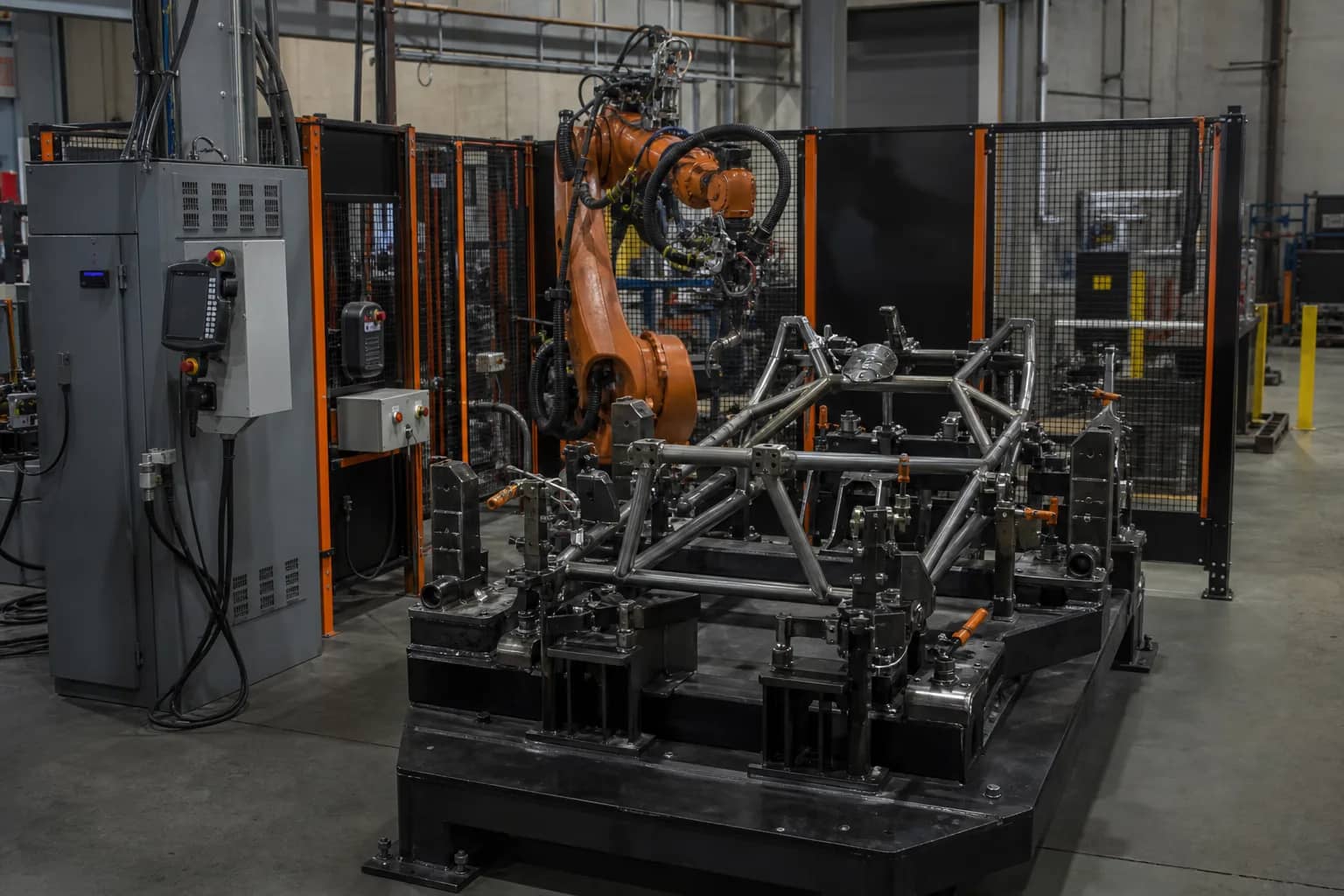

Industrial robot configuration overview
A drawing-led fixture concept developed around datums, clamping, weld access, distortion and changeover. The page is a representative configuration, not a fixed SKU promise. Selection is released only after the application inputs and current manufacturer documentation are reviewed.
01Application first
Start with the part, process and required result.
02System fit
Check mass, moments, access, cycle and interfaces.
03Release evidence
Confirm current documents, scope and validation gates.
Verified information
Configuration statusConfigured per application
Where this configuration fits
Robot selection gates
Moving mass & moments
Include the workpiece, gripper, adapters, cables and process tooling—not payload alone.
Reach & usable envelope
Prove tool angle, fixture clearance, singularity margin and service access in the actual layout.
Cycle & quality target
Connect motion time, process dwell, sensing and recovery logic to a credible output target.
Controls & safety
Define fieldbus, machine handshakes, utilities, guarding and ownership before release.
Complete-cell configuration scope
- Robot/controller compatibility
- EOAT or process package
- Mounting and working envelope
- Safety and peripheral equipment
- OEM presentation where feasible
- Workholding, positioner or part presentation
- Vision, sensing and validation where required
- Guarding, interlocks and project responsibility boundary
What a reviewable proposal should deliver
- Selected platform and verified configuration assumptions
- Interface list covering tooling, process, controls and safety
- Included and excluded supply responsibilities
- Open technical risks and the next validation action
- Commercial quotation linked to an agreed scope
Inputs needed for a robot system RFQ
Send the workpiece, total moving mass including tooling, center of gravity, reach and tool-access requirement, process, target cycle, environment, layout, interfaces, destination and preferred commercial route.
Frequently asked questions
01Is the Custom Welding Fixture a fixed, ready-to-ship SKU?+
No. It is a representative configuration route. Current availability, compatibility, specification, price and lead time are confirmed against the application and current project documents.
02What determines the final robot configuration?+
Workpiece geometry, total moving mass, center of gravity, reach and access, process, cycle, environment, interfaces, safety and destination determine the released configuration.
03Can tooling, controls and peripherals be included?+
Yes. The reviewed scope may include controller, EOAT, process equipment, workholding, sensing, guarding and adjacent equipment when the required interfaces and responsibilities are defined.
04What should be included in the RFQ?+
Send drawings or clear photos, material and dimensions, workpiece and tooling mass, process target, cycle or output, layout, utilities, destination and any preferred control or brand standard.
START WITH THE WORKPIECE
Need a different configuration?
Share the workpiece, process and target. We’ll identify the missing inputs and the next engineering step.
