What does a welding-cell quote actually cover?

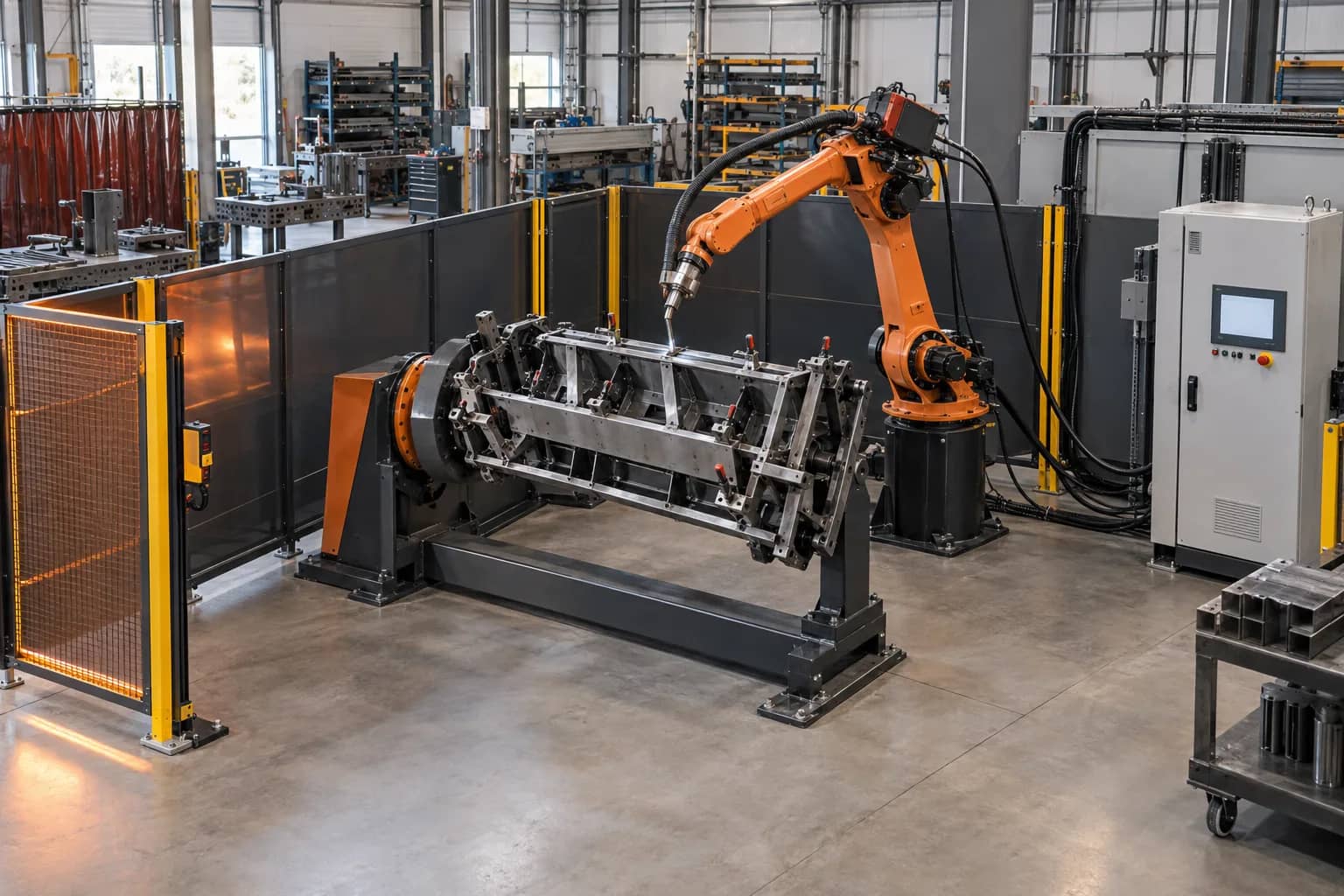

Two quotes can carry the same ‘robotic welding cell’ label yet deliver different assets. A robot-only offer can omit the power source, workholding and safety. An integrated package can still stop at factory handover. A turnkey scope must specify whose site utilities, installation labor and acceptance work are included.
Treat price as the last column of a comparable RFQ. First normalize the bill of materials, interfaces, acceptance tests and lifecycle obligations. Lincoln Electric's published package tiers and Miller Electric's catalog illustrate why the word ‘cell’ does not define one standard bundle.
- Mark every line Included, Option or Excluded; never infer inclusion from a brochure image.
- Record one accountable owner and one acceptance document for each cross-vendor interface.
- Keep taxes, customs, site preparation and local compliance in the commercial boundary, even when supplied by others.
Compare three quote boundaries
Arm, controller and base software; process and site work may sit elsewhere.
Robot plus welding equipment and some interfaces; confirm fixture, safety and FAT.
Specified tooling, safety, tests and handover; still verify site and service exclusions.
Which inputs change robotic welding cell cost?

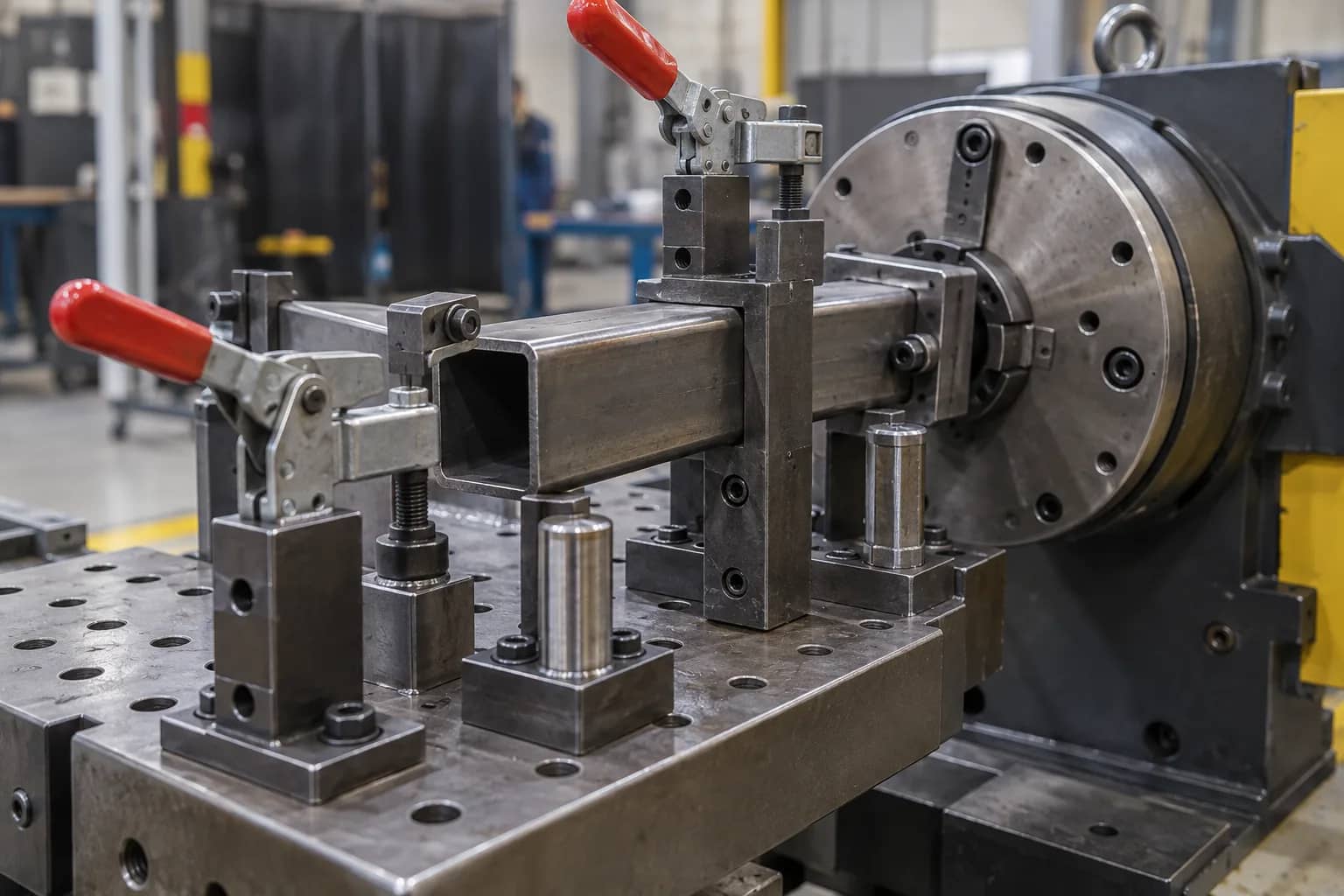

The largest design changes often come from the part rather than the brand. Size and mass affect robot reach and positioner sizing; joint access affects torch geometry, cable routing and fixture complexity; fit-up variation may require sensing or upstream process changes. Part family count affects programming, validation and changeover.
Output targets should distinguish arc-on time from the entire cycle: loading, clamping, positioner index, welding, cleaning, inspection and unloading. A second station may hide loading behind welding, but only if the real part flow supports it. Destination, utilities, safety assessment, delivery terms and service geography may change the commercial scope without changing the robot model.
- Part drawings, tolerances, materials and annual mix
- Weld size, access, quality criteria and repair route
- Target good parts per shift, shifts and expected changeovers
- Floor layout, power, gas, fume control and safety interfaces
- Destination, Incoterms, installation and after-sales owner
From a rough estimate to an auditable quotation
A budgetary estimate is useful for screening; it is not a final contract. The RFQ should identify assumptions and open engineering risks. After a workpiece and layout review, request a revision-controlled BOM, an inclusion/exclusion schedule, interface drawing and acceptance protocol. Only then compare commercial totals.
Factory acceptance testing (FAT) and site acceptance testing (SAT) are separate gates. Define sample parts, pass/fail criteria, who supplies consumables, who records weld quality, who resolves nonconformities and when payment milestones become due. For cross-border projects, explicitly assign packing, freight, customs and on-site commissioning.
- RFQ input → configuration and assumptions → comparable quote → FAT evidence → delivery/SAT responsibility
- Do not treat ‘FAT included’ as sufficient without part count, test duration and signed evidence list.
A quote should mature through five gates
Drawings + weld criteria
Reach + fixture + cycle
BOM + owners + exclusions
Sample parts + results
Site interfaces + handover
Make the next supplier response comparable
Send one identical workpiece pack to each bidder. Ask them to return the matrix below with quantities, make/model or equivalent specification, interface owner, deviations and document revision. A line marked ‘by customer’ is still a project cost and should appear in the total investment model.
For part and process inputs, use our existing welding quote information guide. For system architecture, see the robotic welding application page. When your scope is defined, send the package through the request-a-quote form; TubeFrame can review a multi-brand configuration and partner delivery boundary, subject to project confirmation.
Copyable inclusion / exclusion matrix
Use these prompts to normalize supplier responses; the default is ‘confirm’, never ‘included’. Add quantity, model and price to your own RFQ sheet.
Copy the rows into your RFQ or investment worksheet.
| Scope line | Ask to include | Possible exclusion / option | Proof and owner |
|---|---|---|---|
| Robot and controller | Arm, cabinet, pendant, licenses | Mounting, extra axes, software | Model, revision and controller compatibility |
| Welding source and torch | Source, feeder, torch, cable package | Cooling, spares, consumables | Process specification and interface test |
| Fixture and clamps | Part datums, clamps, change parts | Additional SKUs and spare nests | Approved fixture drawing and fit-up trial |
| Positioner | Axes, faceplates, control interface | Extra station or tooling plates | Mass/inertia calculation and motion test |
| Sensing | Touch sensing or seam tracking scope | Sensor hardware, calibration | Variation test with real parts |
| Safety and fume control | Guarding, interlocks, risk assessment | Facility extraction and local approval | Safety design owner and validation record |
| Programming | Part programs and parameter setup | Future SKUs and reprogramming | Program list and change-control rule |
| FAT | Witness test, sample parts, report | Travel, test material, re-test | Signed protocol and defect closure |
| Shipping | Packing and agreed Incoterm | Freight, duties, insurance | Delivery point and logistics owner |
| Installation and SAT | Rigging, utilities, commissioning | Civil work, electricians, travel | Site readiness and SAT criteria |
| Training | Operator, programmer, maintenance | Extra sessions or languages | Hours, syllabus and attendance |
| After-sales | Warranty route, spares, support | Response SLA and local service | Named first-contact and escalation owner |
Frequently asked questions
Is the robot arm price the welding-cell cost?
No. A usable cell can also require a welding source, torch, fixture, positioner, safety, integration, testing and site work. Ask for an inclusion/exclusion schedule before comparing totals.
Is a positioner always included?
No. It may be a separate option or unnecessary for a particular part. Confirm workpiece orientation, mass, inertia and weld access, then specify the exact axes and tooling scope.
What should a FAT clause specify?
Name the sample parts, operating sequence, cycle and weld acceptance criteria, witness rights, records, nonconformity handling and re-test responsibility. ‘FAT included’ without a protocol is ambiguous.
Can TubeFrame give a standard welding-cell price?
No universal public price is available. Send the part, weld requirements, output target, site and delivery boundary for a project-specific scope review and quotation.
